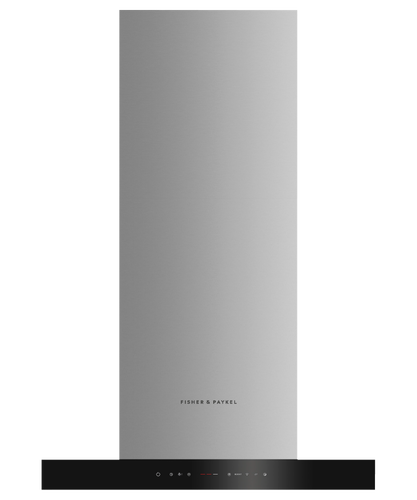

Fisher & Paykel 60cm Series 7 Box Chimney Wall Rangehood – HC60DCXB4
The Fisher & Paykel HC60DCXB4 60cm Series 7 Box Chimney Wall Rangehood combines powerful extraction, smart connectivity and contemporary stainless-steel styling.
Designed to efficiently remove steam, grease and cooking odours, this wall-mounted rangehood delivers a maximum air movement of 780m³/hr and offers three fan speeds plus a Boost function, allowing you to adjust the extraction level depending on your cooking.
The HC60DCXB4 can be installed as an externally ducted rangehood or configured for recirculation, making it suitable for a wide variety of kitchen layouts, including apartments where external ducting may not be practical.
Key Features
-
60cm Series 7 wall-mounted box chimney rangehood
-
Model: HC60DCXB4
-
Contemporary stainless steel and glass finish
-
Powerful maximum air movement of 780m³/hr
-
3 fan speeds plus Boost
-
Designed to remove steam, grease and cooking odours
-
150mm top ducting outlet
-
Can be externally ducted
-
Can be configured for recirculation with optional accessories
-
LED strip lighting illuminates the cooking surface
-
Dimmable lighting
-
Touch-sensitive controls
-
Auto-off / Run-on timer
-
Timer can continue extraction for up to 15 minutes after cooking
-
Filter cleaning alert
-
Two mesh filters
-
Dishwasher-safe filters
-
Stainless-steel filter cover
-
Two-piece height-adjustable chimney flue
-
Wi-Fi enabled
-
Compatible with the SmartHQ™ app
-
SmartHQ notifications can alert you when the filters require cleaning
-
Compatible Fisher & Paykel cooktops can communicate with the rangehood so extraction automatically adjusts according to cooktop power levels
-
Smart control options for fan speed and lighting
Powerful Extraction
The HC60DCXB4 provides a maximum air movement of 780m³/hr, helping quickly clear steam, grease and cooking smells from the kitchen.
Choose between three standard fan speeds and a Boost setting for more intensive extraction when frying, searing or cooking foods that produce higher levels of steam or odour.
Smart Cooktop Connectivity
When paired with a compatible Fisher & Paykel cooktop, the rangehood can automatically adjust its extraction rate according to the cooktop power level.
This allows the cooktop and rangehood to work together, reducing the need to manually change the fan speed while cooking.
The rangehood is also Wi-Fi enabled and works with the SmartHQ™ app, providing smart features and useful notifications such as filter-cleaning reminders.
Flexible Installation – Ducted or Recirculating
The HC60DCXB4 offers flexible installation options.
Ducted installation:
Cooking air is extracted through the 150mm top outlet and vented outside.
Recirculating installation:
The rangehood can also be configured to filter and return air back into the room using the appropriate optional Fisher & Paykel recirculation accessories and carbon filter.
This makes the rangehood suitable for both conventional homes and kitchens where external ducting is not available.
Easy Cleaning
The rangehood contains two mesh filters that are dishwasher safe, making routine maintenance simple.
A built-in filter cleaning alert and SmartHQ app notification help remind you when the filters require cleaning to maintain effective extraction performance.
The stainless-steel and glass surfaces are also designed for easy wiping and cleaning.
LED Cooktop Lighting
The integrated LED light strip provides bright, energy-efficient illumination across the cooking surface.
The lighting is also dimmable, allowing you to adjust the brightness depending on your kitchen environment.
Dimensions
Width: 598mm
Depth: 500mm
Height: 635–1035mm
Ducting outlet diameter: 150mm
The adjustable two-piece chimney allows the overall installation height to be adapted within the specified range.
Power Requirements
Supply voltage: 220–240V
Supply frequency: 50Hz
Total power: 248W
Frequently Asked Questions
1. How powerful is the Fisher & Paykel HC60DCXB4 rangehood?
The Fisher & Paykel HC60DCXB4 has a maximum air movement of 780m³/hr. It provides three fan speeds plus a Boost function, allowing you to increase extraction when producing larger amounts of steam, smoke or cooking odours.
2. Can the HC60DCXB4 be used as a recirculating rangehood?
Yes. The HC60DCXB4 can be installed either as an externally ducted rangehood or as a recirculating rangehood.
For recirculation, additional accessories including the appropriate recirculation carbon filter and diverter are required and are sold separately.
3. What are the dimensions of the Fisher & Paykel HC60DCXB4?
The HC60DCXB4 measures:
598mm wide × 500mm deep × 635–1035mm high.
It uses a 150mm diameter top ducting outlet.
The minimum installation distance from the base of the rangehood to the cooking surface is generally 600mm, however the installation requirements of the specific cooktop must also be followed.
4. Does the Fisher & Paykel HC60DCXB4 have Wi-Fi and automatic cooktop connectivity?
Yes. The HC60DCXB4 is a Wi-Fi-enabled Smart Appliance compatible with Fisher & Paykel's SmartHQ™ app.
When paired with a compatible Fisher & Paykel cooktop, the rangehood can automatically adjust the extraction rate according to the cooktop power level. SmartHQ can also provide useful notifications, including reminders when the rangehood filters require cleaning.
Product Condition

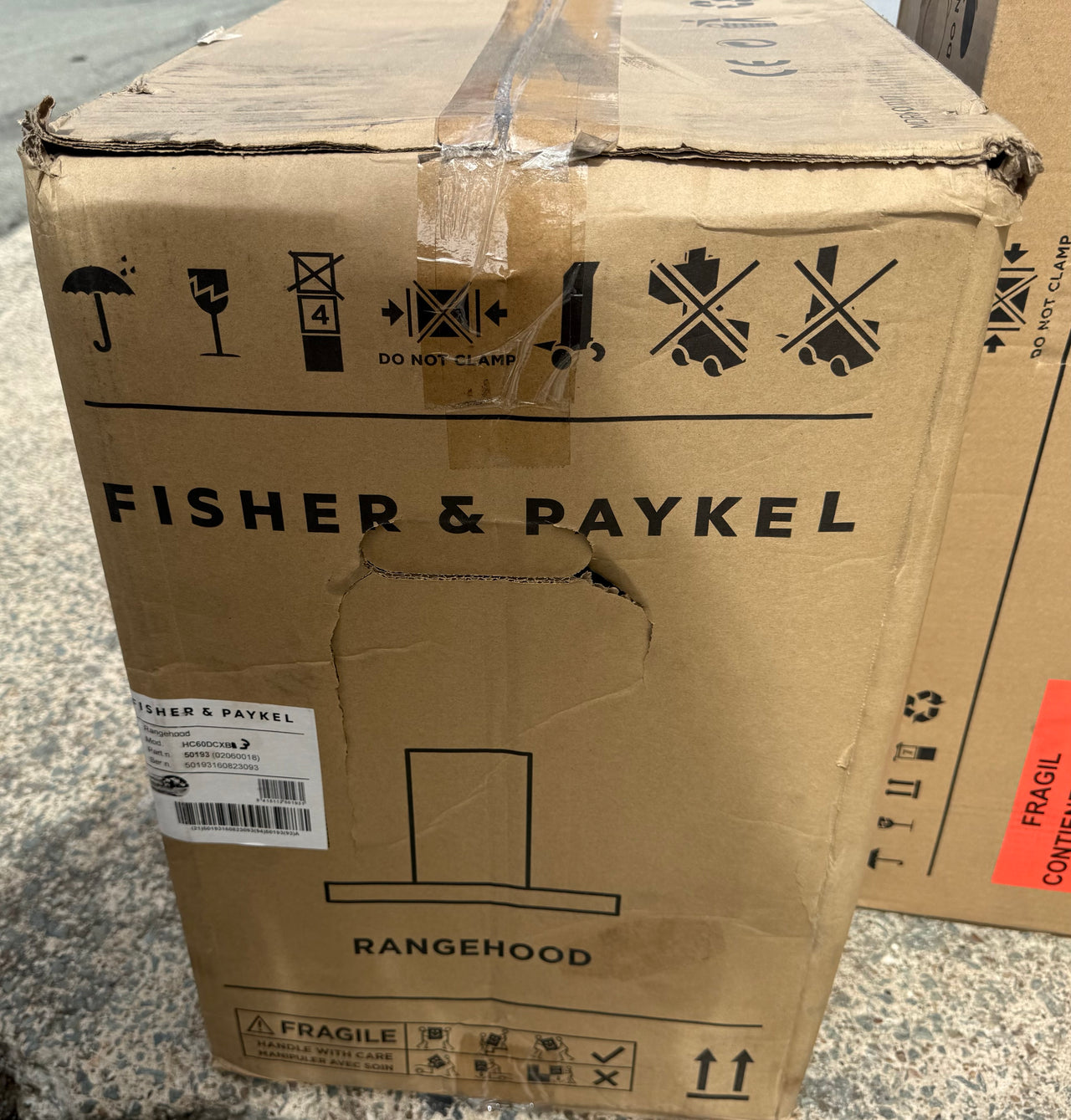

Product grade: Carton Damaged
Warranty: 12 Months Nationwide Manufacturer Warranty
