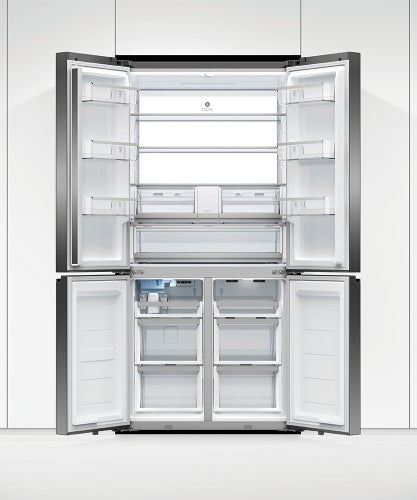

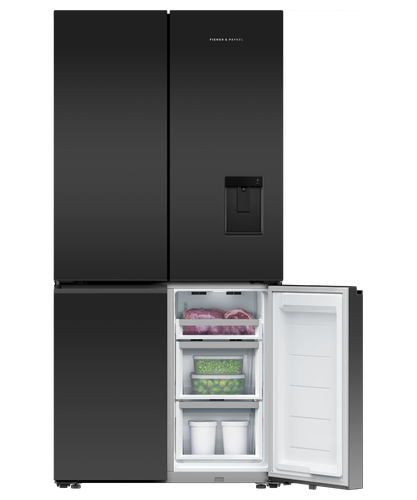

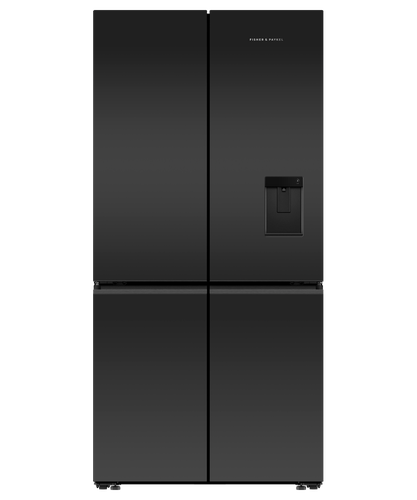

Fisher & Paykel 690L Series 7 Quad Door Fridge Freezer with Ice & Water – RF730QZUVB1
The Fisher & Paykel RF730QZUVB1 690L Series 7 Quad Door Refrigerator Freezer is an extra-large family fridge featuring a premium matte black glass finish, chilled filtered water, automatic ice making and a flexible Variable Temperature Zone.
With 690L of usable storage, this four-door refrigerator offers a spacious 453L refrigerator compartment, 118L freezer and a separate 119L Variable Temperature compartment that can be changed between Fridge, Chill, Soft Freeze or Freezer modes.
Fisher & Paykel's ActiveSmart™ Foodcare technology continuously adjusts temperature, airflow and humidity according to how the refrigerator is used, helping maintain stable conditions and keep food fresher for longer.
Key Features
-
690L total usable capacity
-
744L total gross capacity
-
453L refrigerator
-
118L freezer
-
119L Variable Temperature compartment
-
Series 7 Contemporary design
-
Four-door / Quad Door configuration
-
Premium matte black glass finish
-
Recessed handles
-
Ultra-slim chilled water dispenser
-
Chilled, filtered water
-
Automatic internal ice maker
-
Ice Boost function
-
Dedicated ice bin and scoop
-
Internal replaceable water filter
-
Variable Temperature Zone
-
Four temperature modes: Fridge, Chill, Soft Freeze and Freezer
-
ActiveSmart™ Foodcare
-
Humidity control system
-
Three fruit and vegetable bins
-
Frost-free freezer
-
Inverter-controlled compressor
-
Fast Freeze
-
Bottle Chill
-
Full-extension freezer storage
-
LED interior lighting
-
SmartTouch control panel
-
Wi-Fi connectivity
-
Smart appliance functionality
-
Door alarms
-
Sabbath Mode
-
R600a refrigerant
-
4 Star Energy Rating
-
Approximately 463kWh annual energy consumption
Extra-Large 690L Capacity
The RF730QZUVB1 is one of Fisher & Paykel's largest Quad Door refrigerator freezers, providing generous storage for large families, entertaining and bulk grocery shopping.
Its usable storage is divided into:
Refrigerator: 453L
Freezer: 118L
Variable Temperature compartment: 119L
Total usable volume: 690L
The refrigerator also includes three large humidity-controlled fruit and vegetable bins, flexible glass shelving and full-extension storage to make larger grocery loads easier to organise.
Variable Temperature Zone
The lower-right compartment is a flexible 119L Variable Temperature Zone that can be changed between four different food-storage modes.
Fridge Mode
Use the compartment as additional refrigerator space when you need extra room for fresh groceries, drinks or entertaining.
Chill Mode
Chill Mode operates between approximately -2°C and 1°C and is designed for highly perishable foods such as meat, poultry and fish.
It can also be used to quickly bring drinks down to serving temperature.
Soft Freeze Mode
Soft Freeze operates between approximately -9°C and -5°C.
It is ideal for food that you want frozen but easier to portion or use without completely defrosting, such as bread, soups and cured meats.
Freezer Mode
Convert the compartment into additional freezer storage when you need maximum frozen-food capacity.
Chilled Filtered Water
The RF730QZUVB1 features Fisher & Paykel's ultra-slim water dispenser, providing easy access to cool, filtered water from the refrigerator door.
Its slim design leaves more usable storage space inside the fridge while still accommodating glasses, bottles and larger vessels.
Automatic Ice Maker
An automatic internal ice maker continuously produces fresh ice and stores it inside a dedicated freezer bin.
The Ice Boost function can temporarily increase ice production when entertaining or when additional ice is required.
An internal replaceable water filter provides filtration for both the water dispenser and ice-making system.
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare responds to how the refrigerator is being used.
The system adjusts temperature, airflow and humidity to help maintain stable food-storage conditions and preserve freshness.
Humidity-Controlled Fresh Food Storage
The refrigerator includes three fruit and vegetable bins with humidity control.
These provide generous dedicated storage for fresh produce while helping maintain suitable humidity conditions for fruit and vegetables.
Smart Connectivity
The RF730QZUVB1 is a Wi-Fi-enabled smart refrigerator.
Connected functionality includes:
The refrigerator also includes an easy-to-use SmartTouch control panel for managing temperature and appliance functions.
Frost-Free Freezer
The freezer is completely frost free, removing the need for manual defrosting.
Additional freezer features include:
Premium Black Glass Design
The RF730QZUVB1 features a distinctive matte black glass exterior with flat doors and recessed handles.
The streamlined Contemporary design gives the refrigerator a premium architectural appearance and allows it to coordinate with other black-glass Fisher & Paykel appliances.
Energy Efficiency
Energy Rating: 4 Stars
Annual Energy Consumption: approximately 463kWh/year
Compressor: Inverter controlled
Refrigerant: R600a
Dimensions
Height: 1900mm
Width: 905mm
Depth: 748mm
Depth excluding the door is approximately 660mm.
Recommended Cabinet Space
Fisher & Paykel specifies a minimum cabinetry opening of approximately:
Width: 945mm
Height: 1920mm
Internal depth: 690mm
Minimum air clearances:
Top: 20mm
Each side: 20mm
Rear: 30mm
Always check the official installation guide and your available kitchen space before installation.
Plumbing Requirements
Yes, the RF730QZUVB1 requires a water connection.
A mains water connection is required to operate the chilled filtered water dispenser and automatic ice maker.
The refrigerator uses an internal replaceable water filter.
Frequently Asked Questions
Does the Fisher & Paykel RF730QZUVB1 have ice and water?
Yes.
The RF730QZUVB1 has an ultra-slim chilled filtered water dispenser and an automatic internal ice maker.
It also includes an Ice Boost function for increased ice production.
Does the RF730QZUVB1 require plumbing?
Yes.
A suitable mains water connection is required for the chilled water dispenser and automatic ice maker.
What is the capacity of the Fisher & Paykel RF730QZUVB1?
The RF730QZUVB1 has 690L of usable capacity, divided into:
Its total gross capacity is 744L.
Can part of the RF730QZUVB1 be converted from fridge to freezer?
Yes.
The lower-right 119L Variable Temperature Zone can operate in four modes:
Fridge, Chill, Soft Freeze or Freezer.
This allows you to change the storage configuration depending on your household's needs.
What are the dimensions of the RF730QZUVB1?
The Fisher & Paykel RF730QZUVB1 measures:
1900mm high × 905mm wide × 748mm deep.
What is the energy rating of the RF730QZUVB1?
The RF730QZUVB1 has a 4 Star Energy Rating and uses approximately 463kWh per year under the Australian energy test standard.
Is the RF730QZUVB1 frost free?
Yes.
The freezer is frost free, so manual freezer defrosting is not required.
Does the RF730QZUVB1 have Wi-Fi?
Yes.
The RF730QZUVB1 is a Wi-Fi-enabled smart appliance with connected functions including alerts, notifications and remote operation.
What finish is the RF730QZUVB1?
The RF730QZUVB1 features a premium matte black glass finish with recessed handles.

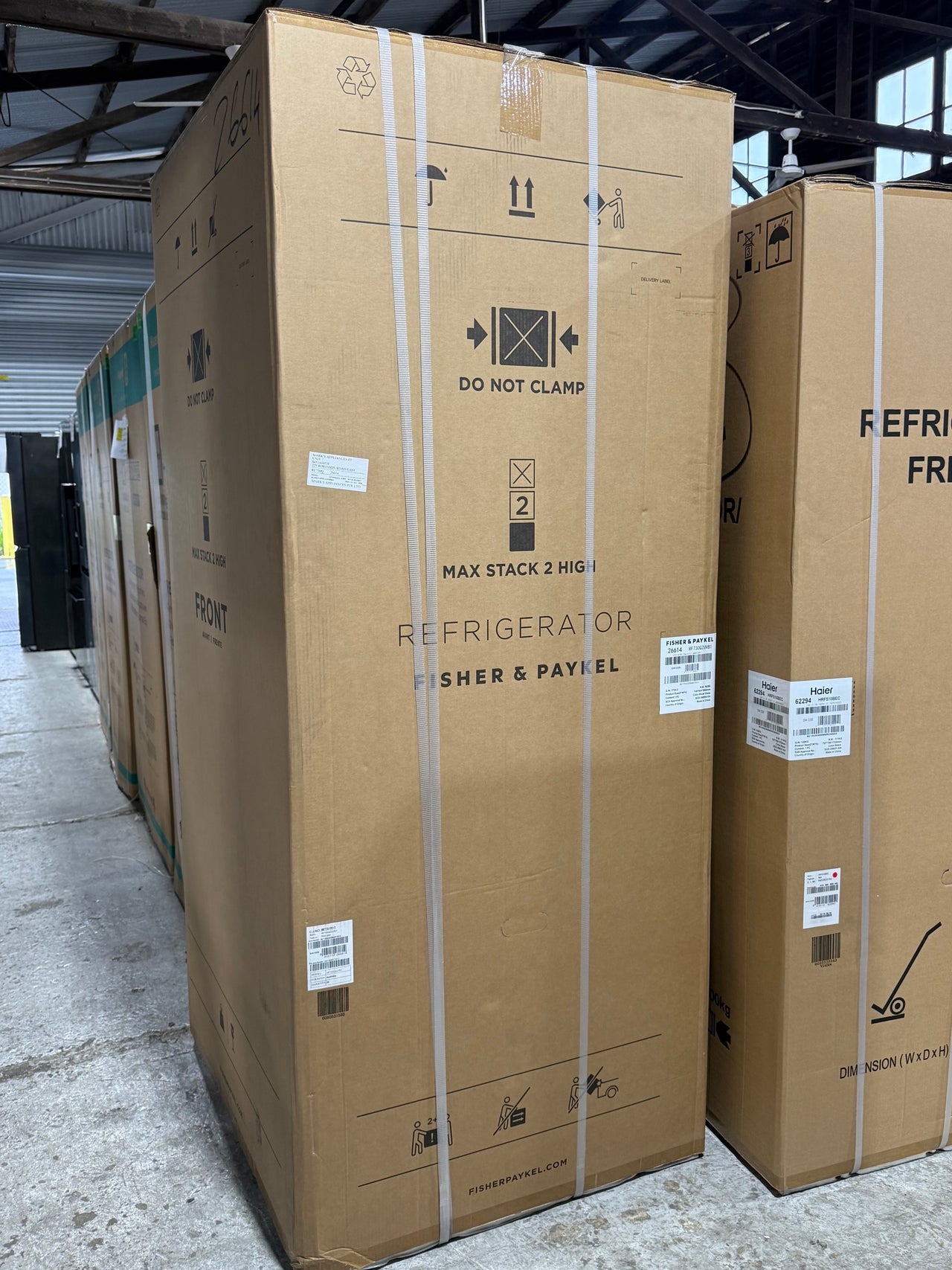

Product Condition
Grade: Carton damaged
Warranty: 12 Months Nationwide Manufacturer Warranty
