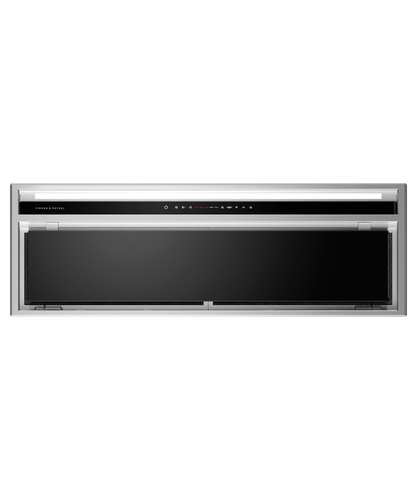

Fisher & Paykel 90cm Series 7 Integrated Insert Wall Rangehood – HP90IDCHX4
The Fisher & Paykel HP90IDCHX4 90cm Series 7 Integrated Insert Wall Rangehood is designed to provide powerful kitchen ventilation while remaining discreetly concealed within your cabinetry.
Featuring perimeter extraction, a powerful maximum airflow of 780m³/hr, three fan speeds plus a Boost function, and smart connectivity, this integrated rangehood is ideal for modern kitchens where clean design and effective extraction are equally important.
Its sleek black glass and stainless-steel finish sits neatly within overhead cabinetry, while the wide extraction area helps remove steam, cooking odours and vapour from above your cooktop.
Key Features
-
90cm Series 7 integrated insert wall rangehood
-
Model: HP90IDCHX4
-
Integrated design fits discreetly into kitchen cabinetry
-
830mm actual product width
-
Powerful maximum air movement of 780m³/hr
-
Three fan speeds plus Boost
-
Perimeter extraction
-
Designed to quickly remove steam, vapour and cooking odours
-
Wi-Fi enabled
-
Compatible with the SmartHQ™ app
-
Can automatically adjust extraction when paired with a compatible Fisher & Paykel cooktop
-
Auto-off / Run-on timer
-
Timer can continue extraction for up to 15 minutes after cooking
-
Dimmable LED strip lighting
-
Full-surface lighting across the cooktop
-
Filter cleaning alert
-
SmartHQ filter-cleaning notifications
-
Two mesh filters
-
Dishwasher-safe filters
-
Black glass and real stainless-steel frame
-
Top extraction
-
Can be installed as a ducted rangehood
-
Optional recirculation configuration
-
Recirculation carbon filter available separately
-
220–240V power supply
Powerful 780m³/hr Extraction
The Fisher & Paykel HP90IDCHX4 provides a maximum air movement of 780m³/hr, helping remove steam, vapour and cooking smells quickly and effectively.
There are three normal fan speeds plus a Boost function, allowing you to choose the appropriate extraction level for everything from gentle simmering to high-heat frying or searing.
Perimeter Extraction
The HP90IDCHX4 uses perimeter extraction, drawing cooking vapours around the edges of the filter area.
This design combines effective extraction with a cleaner, more streamlined appearance, helping the rangehood remain visually discreet when installed within kitchen cabinetry.
Automatic Cooktop Connectivity
When paired with a compatible Fisher & Paykel cooktop, the HP90IDCHX4 can automatically adjust its extraction rate according to the cooktop power level.
This means the rangehood can increase or reduce fan speed as your cooking changes, reducing the need for manual adjustment.
SmartHQ™ Wi-Fi Connectivity
The HP90IDCHX4 is a Wi-Fi-enabled smart appliance compatible with Fisher & Paykel's SmartHQ™ app.
SmartHQ can provide useful notifications, including reminders when the rangehood filters need cleaning, helping maintain effective extraction performance.
Run-On Timer
Cooking odours can remain in the kitchen even after the cooktop has been switched off.
The HP90IDCHX4 includes an Auto-off / Run-on timer that can keep the rangehood operating for up to 15 minutes after cooking, helping remove lingering steam and smells before automatically switching off.
Full-Surface LED Lighting
Low-energy dimmable LED strip lighting provides bright, even illumination across the cooking surface.
The dimmable function also allows you to reduce the lighting level when full brightness is not required.
Easy-Clean Dishwasher-Safe Filters
The HP90IDCHX4 includes two removable mesh filters.
Both filters are dishwasher safe, making routine cleaning easier, while the rangehood's filter-cleaning alert helps remind you when maintenance is required.
Ducted or Recirculating Installation
The HP90IDCHX4 supports top extraction and can be installed as a conventional ducted rangehood.
It can also be configured for recirculating operation using the appropriate Fisher & Paykel recirculation accessories.
For recirculation, the compatible carbon filter is sold separately.
Dimensions
Overall width: 830mm
Overall depth: 280mm
Overall height without ducting adaptor: 316mm
Overall height with ducting adaptor: 361mm
Standard cabinetry cut-out:
Width: 800mm
Depth: 260mm
Ducting adaptor diameter: 150mm
The product is sold as a 90cm rangehood, while its actual overall appliance width is 830mm.
Installation Clearance
The minimum recommended distance from the cooktop surface to the base of the rangehood is 600mm.
Installation requirements can vary depending on the cooktop being installed, so the cooktop and rangehood installation instructions should always be checked before installation.
Frequently Asked Questions
1. How powerful is the Fisher & Paykel HP90IDCHX4?
The HP90IDCHX4 has a maximum extraction capacity of 780m³/hr.
Product grade: Carton damaged
Warranty: 12 months nationwide manufacturer warranty
