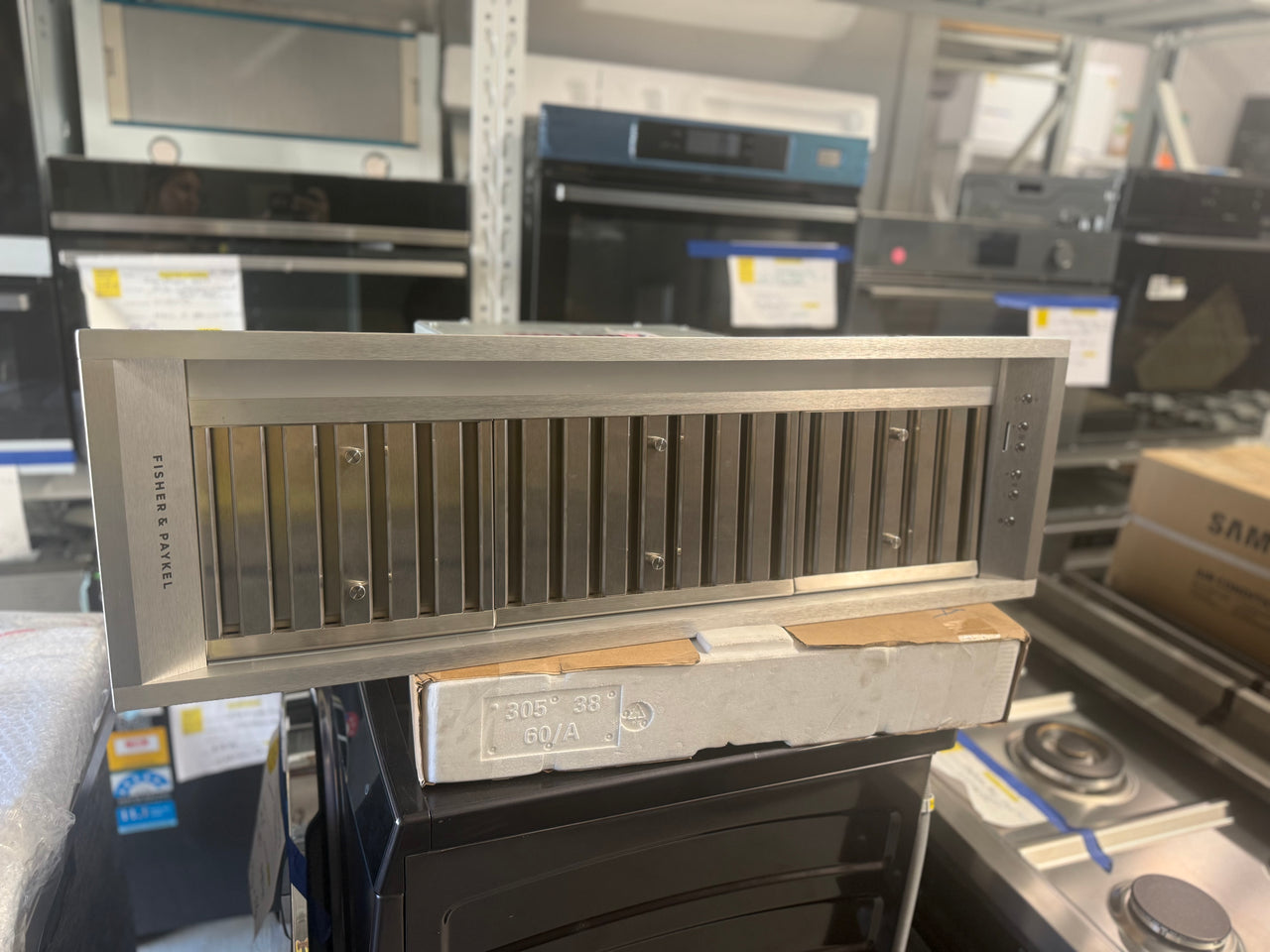

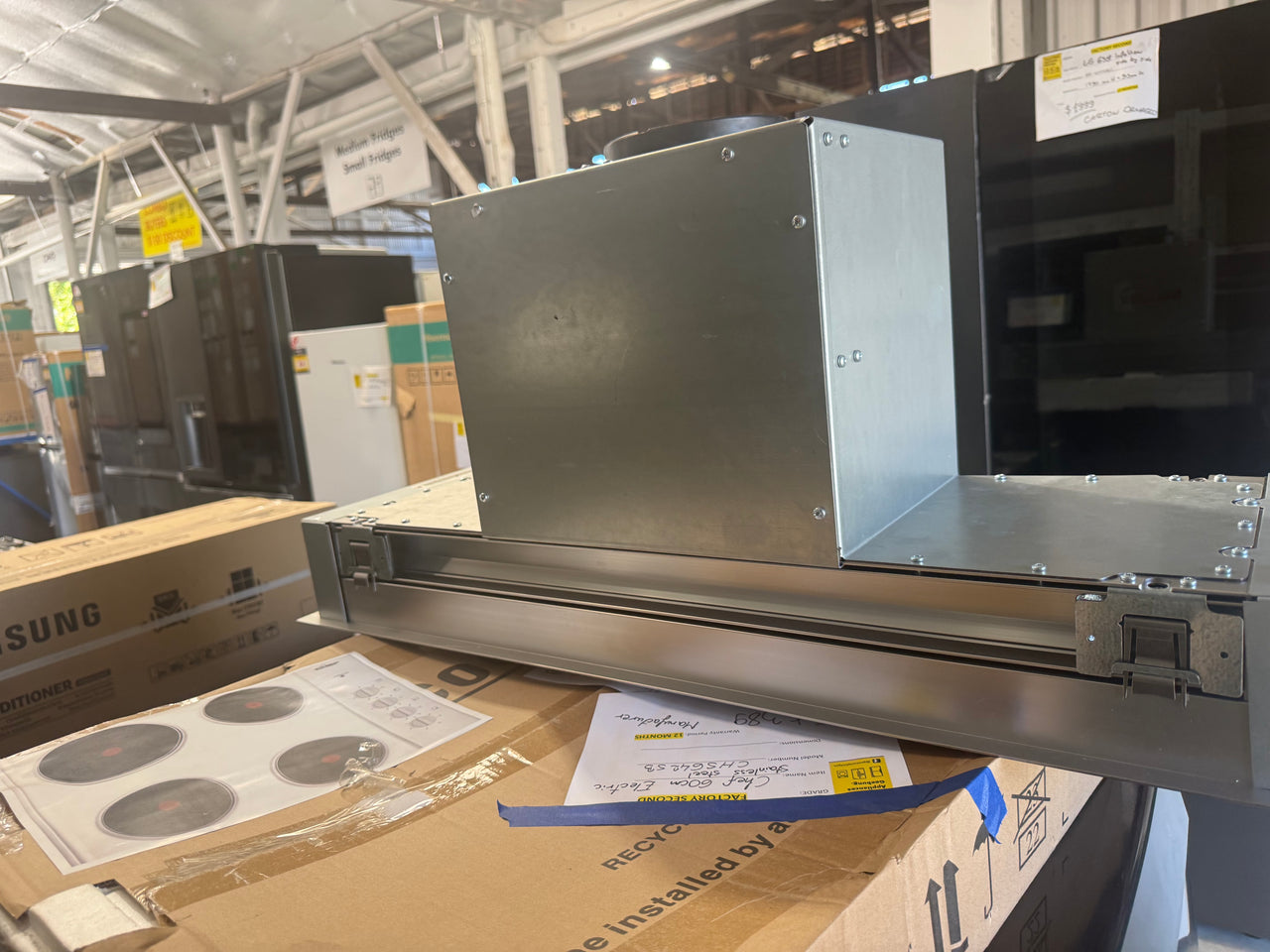

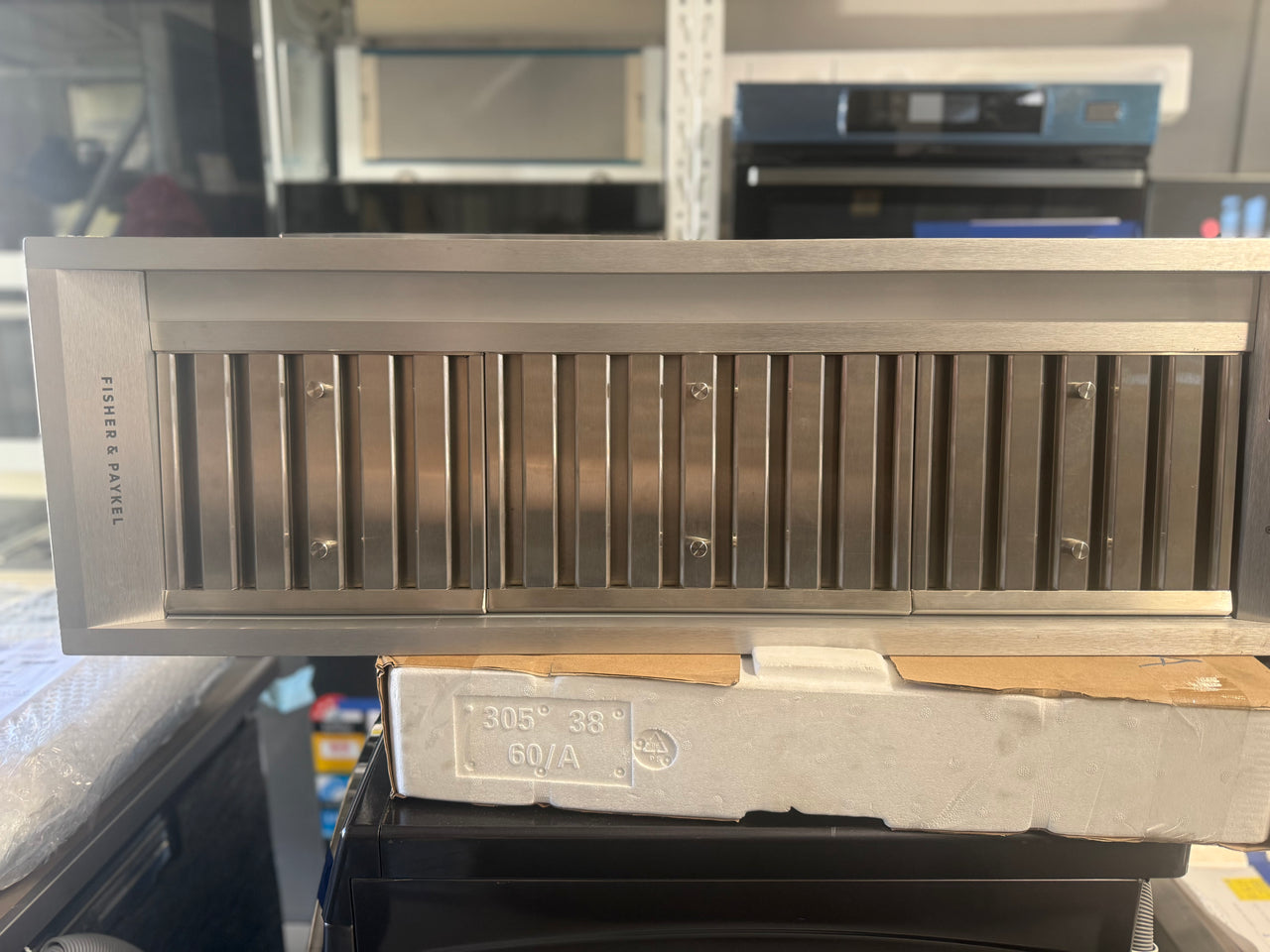

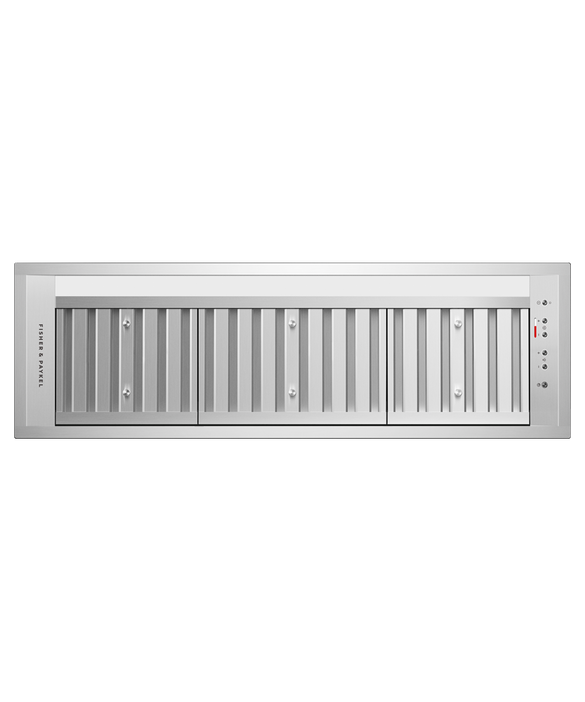

Fisher & Paykel 90cm Series 9 Integrated Insert Wall Under Cupboard Rangehood HPB9028-1

Fisher & Paykel 90cm Series 9 Integrated Insert Wall Under Cupboard Rangehood HPB9028-1

Premium Integrated Ventilation – Powerful, Quiet & Seamless Design

The Fisher & Paykel Series 9 Integrated Insert Rangehood is engineered for modern kitchens where performance meets discreet design. Designed to be fully concealed within cabinetry, this 90cm rangehood delivers powerful extraction while maintaining a clean, minimalist aesthetic.

With advanced airflow performance, intelligent features, and refined lighting, it ensures a fresh, well-lit cooking environment without compromising on style.





Key Features



Powerful Extraction Performance



• High extraction rate of up to 955m³/hr effectively removes smoke, grease, and odours
• Edge-to-edge extraction maximises coverage across your entire cooktop
• Ideal for larger cooktops and high-heat cooking environments



Seamless Integrated Design

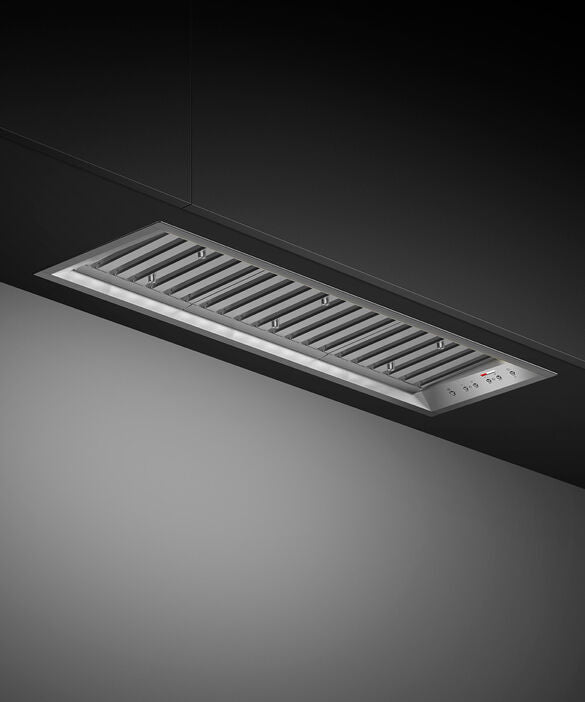

• Designed to be built into overhead cabinetry for a hidden, streamlined finish
• Perfect for modern kitchens where appliances remain visually unobtrusive



Advanced Brushless DC Motor



• More energy-efficient and quieter than traditional AC motors
• Provides reliable long-term performance with reduced noise levels (~54dBA)



Intelligent Fan Control



• 5 fan speeds allow precise control depending on cooking intensity
• Auto-off/run-on timer helps clear remaining steam after cooking



Full Surface LED Lighting



• Dimmable LED strip lighting evenly illuminates the cooktop
• Eliminates shadows and glare while enhancing visibility
• Multiple light settings with smooth fade-in/fade-out function



Easy Cleaning & Maintenance



• Dishwasher-safe stainless steel baffle filters
• Built-in grease tray simplifies maintenance
• Filter cleaning alert ensures optimal performance



User-Friendly Operation

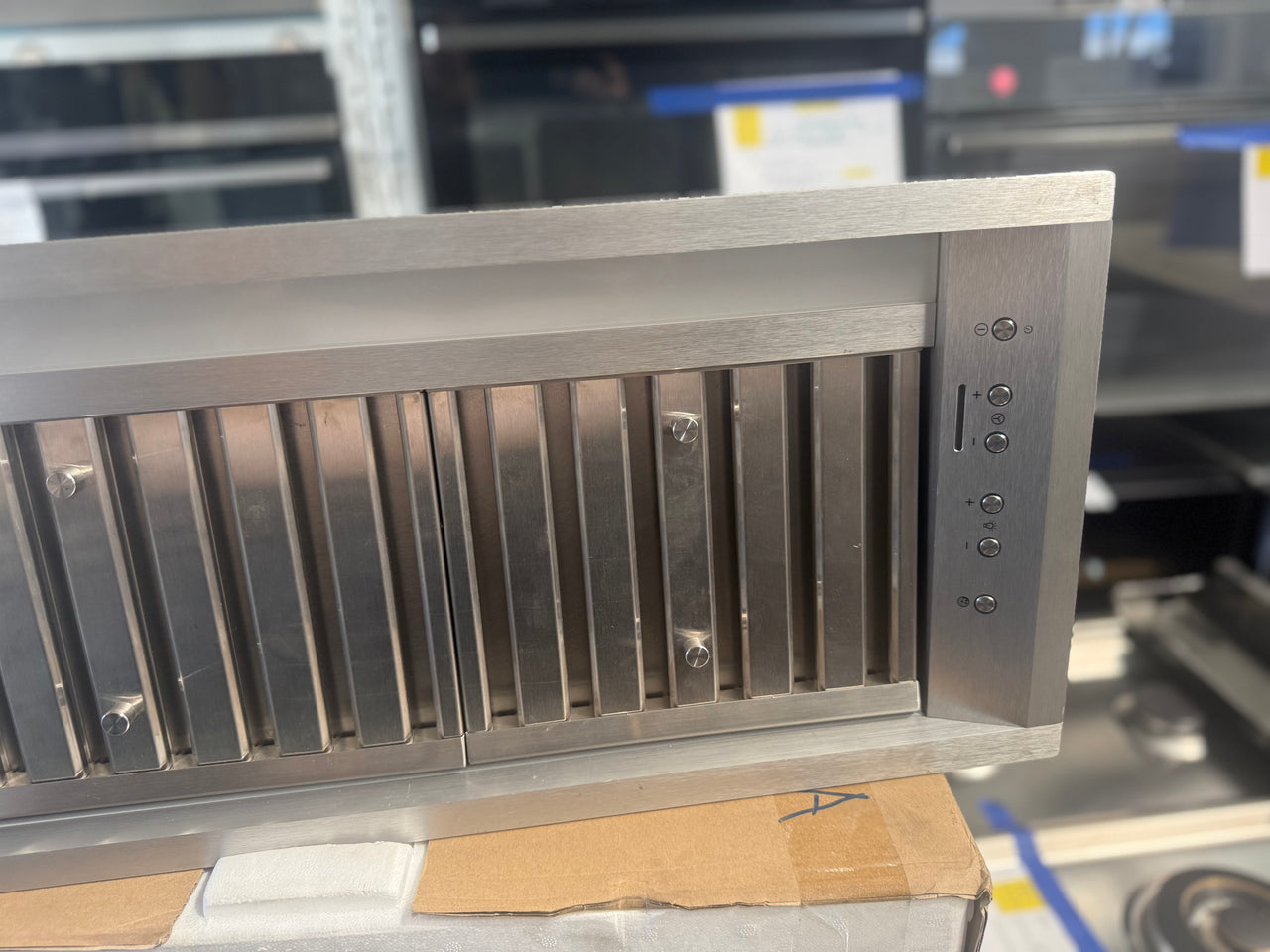

• Sleek soft-touch controls with LED illumination
• Optional remote control capability (model dependent)







Specifications



• Type: Integrated / Undermount Rangehood
• Size: 90cm
• Maximum Airflow: 955m³/hr
• Fan Speeds: 5
• Noise Level: Approx. 54 dBA
• Motor Type: Brushless DC
• Filter Type: Stainless Steel Baffle (3 filters)
• Lighting: LED Strip (dimmable, 5 settings)
• Extraction Type: Surface extraction
• Ducting: Vertical ducted (150mm diameter)

Dimensions

• Width: 880mm
• Height: 407mm
• Depth: 280mm



Power

• Voltage: 230V

Installation

• Designed for built-in cabinetry installation
• Adjustable mounting system suits cabinet thickness 16mm–38mm
• Ducted installation recommended for optimal performance

Why Customers Choose This Model

• Premium Series 9 quality and finish
• Strong airflow suitable for family kitchens or heavy cooking
• Completely hidden design for high-end kitchens
• Reliable Fisher & Paykel engineering
• Low-noise operation with high efficiency

Product grade: Factory second

Warranty: 12 months warranty
